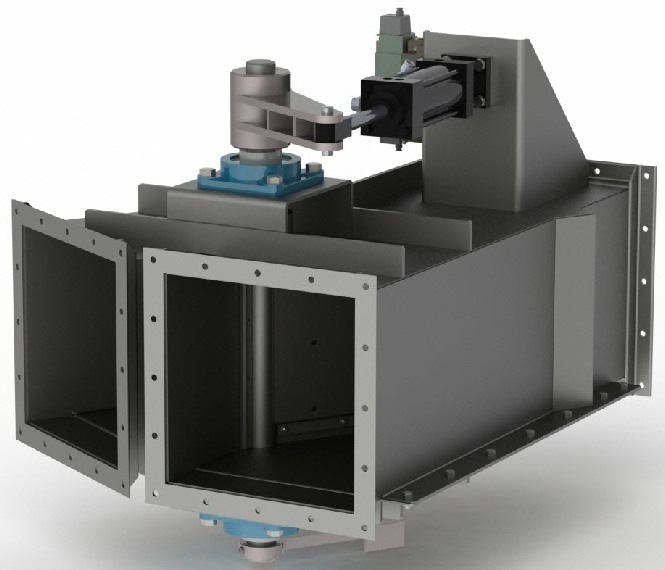

AIR SYSTEM DIVERTER VALVES

Diverters are designed to handle applications where there is dust or fiber loading in the air stream. The pneumatic actuator provides full stroke blade positioning, diverting air from one side to the other. Typical applications include diverting air from on-line hoods to an air bleed to maintain conveying velocity in the duct network in the event of a sheet break or thread-up operation.

Features and Benefits

•     Applications: Air & dust collection systems
•     Heavy duty, high duty cycle design
•     Galvanized construction standard, other materials     and finishes available
•     Flush blade seal; Low leakage
•     All bearings are externally mounted for easy access
•     Pneumatic cylinder
•     Visual flag for blade position indication
•     Flanged inlets/outlets, transitions optional
•     Removable access panel for maintenance
•     Sizes 8” thru 32” Square (Even Sizes)
•     Pressure: Up to 15” W.G.
•     Mountable in any position - vertical or horizontal
